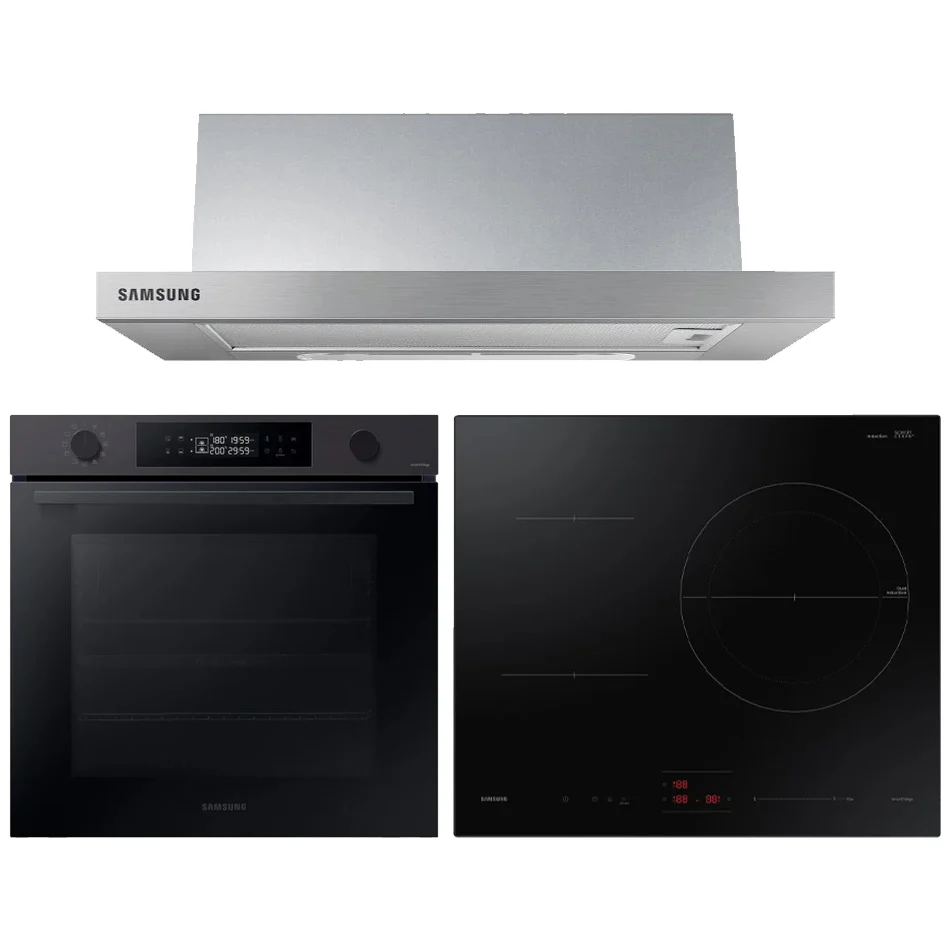

NV7B4430ZAB 76L BUILT-IN OVEN & NZ63B4026AK 60CM INDUCTION HOB & NK24M1030IS 60CM TELESCOPIC HOOD

NV7B4430ZAB 76L BUILT-IN OVEN & NZ63B4026AK 60CM INDUCTION HOB & NK24M1030IS 60CM TELESCOPIC HOOD

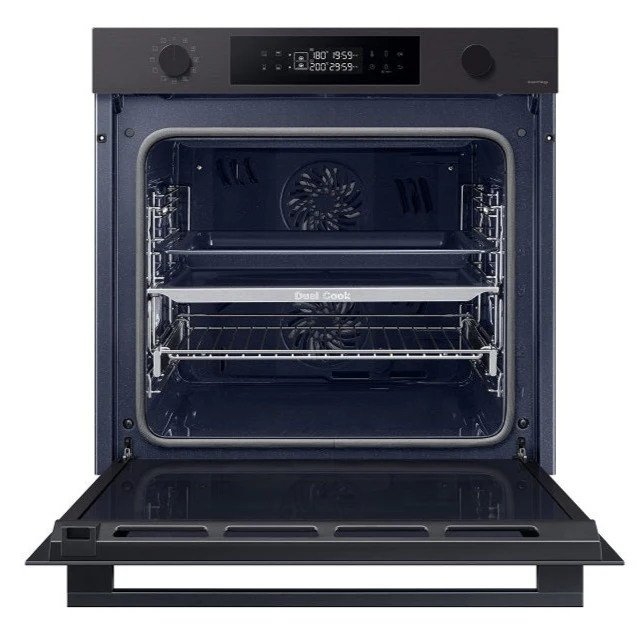

SPECIFICATIONS OF NV7B4430ZAB 76L BUILT-IN OVEN

Output Power 3650 W
Oven Temp. Ranges (Single) 30~250 (Grill 100~270)
Oven Temp. Ranges (Upper, Lower) 40~250 °C
Oven Temp. Ranges (Twin) 40~250 °C
Steam Type No
Upper Grill (In/Out) 1600 / 1100 W
Lower Grill 1100 W
Single Mode (Top Heat + Convection) Yes
Single Mode (Large Grill) Yes
Single Mode (Eco Grill) Yes
Single Mode (Bottom + Convection) Yes
Convection 1200 W
Cleaning Method Pyrolytic
Steam Clean Yes
Wi-Fi Connection Yes
Auto Programs Single 40ea / Dual Cook 10ea
Air Fry No
Air Sous Vide Yes
Cook Timer Yes
Camera No
Child Safety Lock Yes
End Timer Yes
Clock Yes
Interior Lamp 25W / 40W (Halogen)
Interior Light (Position) Top / Side
Light (Lamp) On/Off Yes
Language Option No
Oven Door Glass Quadruple
Display Type LED / White
Cavity Material Ceramic Enamel
Control Method Dual Dial & Touch
Soft Closing Door No
Door Type Drop down
Accessories Square Baking Tray: 2ea
Square Wire Rack: 1ea

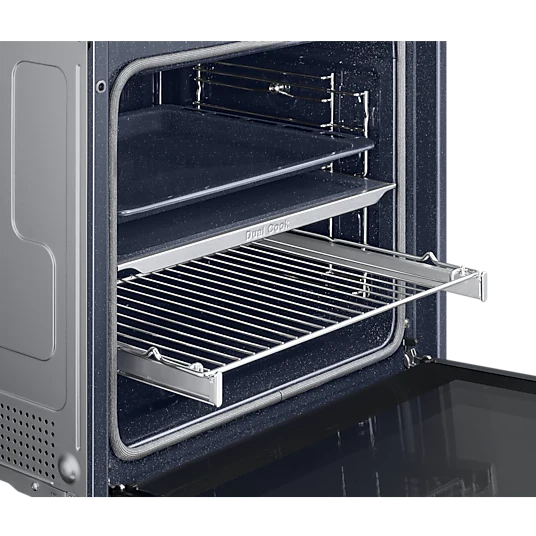

Telescopic Rail: 1 Level (Half)
Usable Volume (Whole) 76L
Cavity (WxHxD) 560 x 579 x 549 mm
Outside (WxHxD) 595 x 596 x 570 mm

Diagrams highlight the dimensions of the oven: height (front) = 596mm, height (back) = 559mm + 20mm to height in middle, width = 595mm (incl. front) / 560mm (excl. front), depth = 550mm + 21mm for the door (excl. handle). Another diagram shows the minimum size of the built-in cabinet space that the oven can be installed in: height = min. 590mm / max. 600mm, width = min. 560mm, depth = min. 550mm + a space of min. 50mm behind the oven. It also shows that the doors extends out 481mm when fully open. The text says that there must be vents on the rear floor of the built-in cabinet space that are a min. 460mm x min 50mm to ventilate heat and circulate the air.


SPECIFICATIONS OF NZ63B4026AK 60CM INDUCTION HOB

Model Type Install Built-in
Cooktop Frame 4 Metal Frame
Control Method Touch
Features Child Safety Lock
Kitchen Timer
Pause
Residual Heat Indicator
Safety Shutoff
High Temp. Limit
Auto Pan Detection
Sound on/off
Power On/Off
Cooktop 3 Burners
Smart WiFi Embedded
App Connectivity SmartThings App Support
Power/Ratings Total Power: 3.4 kW
Qty of Power Boost: 3
Power Level: 9 + Boost
Burner - Left Front: 180 mm - 1800 / 2800 W
Burner - Left Rear: 145 mm - 1400 / 2000 kW
Burner - Right: 280 mm - 2400 / 3400 W
Package (WxHxD) 600 x 48 x 520 mm
Cutout (WxHxD) 560 x 480 mm
Net (WxHxD) 690 x 108 x 645 mm
Weight (Gross) 12.6 kg

The cooktop measures 590mm wide, 520mm deep, and 44mm* high. The 44mm* height must fit inside the countertop cutout. Countertop cutouts must be 559-561mm wide, 479-481mm deep, and maximum R25mm round corners. There must be minimum 55mm of uncut space on the back of the cutout and minimum 50mm of uncut space on the front of the cutout. The minimum height of 15mm under the cooktop plus the minimum thickness of the countertop of 10mm must be minimum 59mm. Drawers installed under the cooktop must be minimum 20mm from the rear wall. When the cooktop is installed, there must be minimum 500mm of space above the cooktop and minimum 50mm to the right of the cooktop.



SPECIFICATIONS OF NK24M1030IS 60CM TELESCOPIC HOOD

Type of Controls 100-240 V
Number of Motors/Fans 1/1
Number of Extraction Speeds 3 EA
Max Extraction(㎥/hr) 392 ㎥/h
Sound Power (Normal) 71 dBA
Hood Lighting LED 2* 3W
Hood Filter Washable Aluminium , Charcoal Filter
Extraction Type Ducted or Recirculating
Net (WxHxD) 598 x 180 x 301 mm
Package (WxHxD) 634 x 241 x 354 mm
Weight (Net) 6.5 kg
Weight (Gross) 8.0 kg
