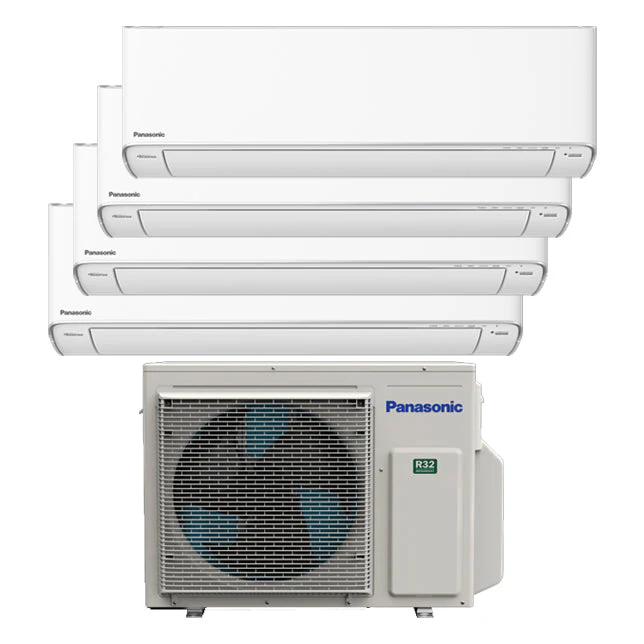

XU SYSTEM 4 AIRCON (9K x3 + 18K) & FREE INSTALLATION
Stay Safe Indoors with 24-hour nanoe™ X Air Protection
The indoor units, equipped with nanoe™ X technology, use the benefits of hydroxyl radicals to effectively inhibit adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify your living spaces, providing a cleaner and comfortable space for you and your loved ones - making your home a safe haven 24/7.
Fresh Clean Air From the Inside
The Inside Cleaning function works inside of an indoor unit to remove moisture, and release nanoe™ X particles, inhibiting various pollutants deep inside the indoor unit while ensuring it is always dry and clean. Activating it is easy with a simple press and hold.
Effective in Removing 99% of Dust Particles
Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.
*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).
CS-XU9BKZW
Cooling Capacity (min-max) (kW): 2.8 kW
Cooling Capacity (min-max) (Btu/h): 9,550 Btu/h
Power Source: Single Phase, 220-240V, 50Hz
Sound Pressure Level (H/L): 44/28 dB(A)
Indoor Unit Air Circulation: 12.0 m³/min (425 ft³/min)
Indoor Unit Dimensions (H x W x D) (mm): 295 mm x 890 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch): 11-5/8 inch x 35-1/16 inch x 9-5/8 inch
Indoor Unit Net Weight: 10 kg (22 lb)
Refrigerant Pipe Diameter (Liquid Side): ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side): ø 9.52 mm
Power Supply: Outdoor
CS-XU18BKZW
Cooling Capacity (min-max) (kW): 5.0 kW
Cooling Capacity (min-max) (Btu/h):17,100 Btu/h
Power Source: Single Phase, 220-240V, 50Hz
Sound Pressure Level (H/L): 46/34 dB(A)
Indoor Unit Air Circulation: 19.3 m³/min (680 ft³/min)
Indoor Unit Dimensions (H x W x D) (mm): 295 mm x 1,060 mm x 249 mm
Indoor Unit Dimensions (H x W x D) (inch): 11-5/8 inch x 41-3/4 inch x 9-13/16 inch
Indoor Unit Net Weight: 12 kg (26 lb)
Refrigerant Pipe Diameter (Liquid Side): ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side): ø 12.70 mm
Power Supply: Outdoor
SPECIFICATIONS OF CU-4XU33YBZ COMPRESSOR
Panasonic’s Multi-Split Air Conditioning system offers multi-zone cooling solution with one outdoor unit, perfect for limited outdoor installation spaces. System 3 connects up to 3 indoor units, with independent operational settings for each indoor unit. High efficiency outdoor unit with environmentally friendly R32 refrigerant, highest 5-tick energy efficiency rating and Inverter technology. The outdoor unit is durable against harsh conditions yet reliable in providing optimal temperature control, comfort and cost savings for its occupants.
Panasonic’s Multi-Split Air Conditioning system offers multi-zone cooling solution with one outdoor unit, perfect for limited outdoor installation spaces. System 4 connects up to 4 indoor units, with independent operational settings for each indoor unit. High efficiency outdoor unit with environmentally friendly R32 refrigerant, highest 5-tick energy efficiency rating and Inverter technology. The outdoor unit is durable against harsh conditions yet reliable in providing optimal temperature control, comfort and cost savings for its occupants.
|
KEY FEATURES 5-tick energy efficiency rating Environmentally friendly R32 refrigerant Energy savings and precise temperature control with Inverter High cooling capacity of 7kW Durable under harsh conditions Compact design fits every building type |
| Cooling Capacity (min-max) | 7.00 (2.80 ~ 11.20) kW 23,900 (9,550 - 38,200) Btu/h |
| Power Source | Single Phase, 220V-240V, 50Hz |
| Maximum Connectable Capacity | 17.6 kW |
| Maximum Connectable Indoor | 4 Units |
| Electrical Data | Running Current: 6.7 - 6.1 A Power Input (min-max): 1,440 (520 - 3,000) W |
| EER (min-max) | 16.60 (18.37 - 12.73) Btu/hW |
| COP (min-max) | 4.86 (5.38 - 3.78) W/W |
| Weighted COP | 5.61 W/W |
| Sound Pressure Level | High/Low 54/49 dB(A) |
| Maximum Current | 16.6 A |
| Starting Current | 6.7 A |
| Compressor Output | 1,500 W |
| Dimensions | Height: 695 mm Width: 875 (+95) mm Depth: 320 mm |
| Net Weight | 50 kg |
| Refrigerant Pipe Diameter | Liquid Side: ø 6.35 mm x 4 Gas Side: ø 9.52 mm x 4 |
| Pipe Extension | Maximum Pipe Length (1 Room): 30 m Maximum Pipe Length (Total): 70 m Maximum Elevation Length: 15 m Additional Refrigerant Gas: Chargeless |
| Note | Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
