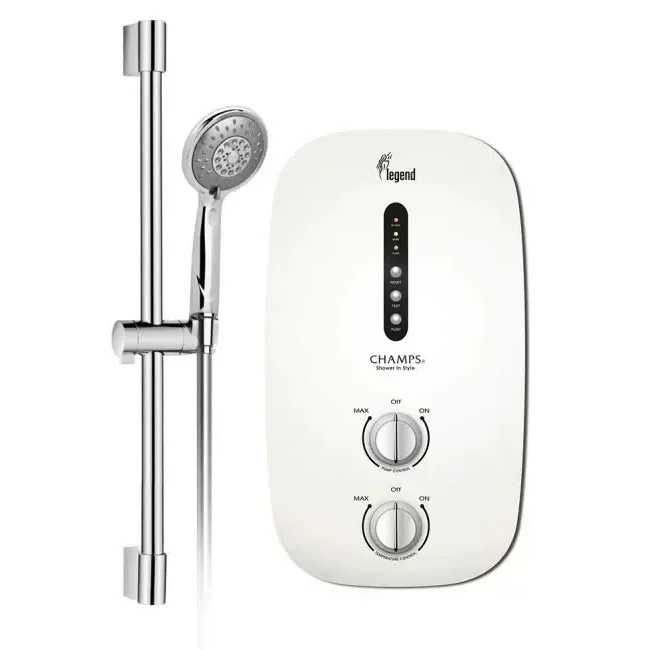

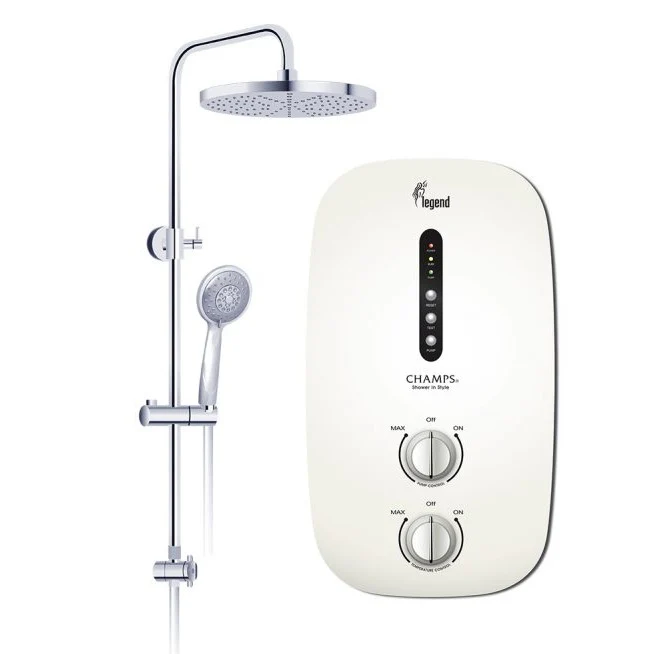

LEGEND INSTANT WATER HEATER
FEATURES
|
High Quality Polymer Tank CHAMPS tanks are constructed with high quality durable polymer material for energy saving by minimizing heat loss. |
|
High Precision Power Selector Provides easy and precise control over the water temperature. |
|
DC Booster Pump Boosts the water pressure while achieving energy efficiency. |
|
Double Pole Electricity leakage Sensing Device (ELSD) Cuts off power supply to the heater when leakage current is detected. |
|
Double Safety Anti-Scald Device Enhanced double safety anti-scald device cuts off power supply automatically when the water temperature rises to scalding level. |
|
IP25 Splash Proof Designed and built with an IP25 rating that protects the internal circuits from splashing water. |
SPECIFICATION
| Power Rating | 3.3kW, 230V a.c 50Hz |
| Inlet and Outlet Water Connection | Ø15mm (1/2" BSP) |
| Minimum Water Flow Rate | 2L/Min |
| Recc. Water Flow Rate | 4-6L/Min |
| Permissible Inlet Water Pressure | 0.1-0.3 MPa |
| Recc. Inlet Water Pressure | 0.1 MPa |
| Dimension | 236 x 413 x 95mm |
| Weight | 1.7kg |
| Warranty | 5 Years Warranty – Heater Tank 2 Years Warranty – Heater Parts |
Original: $170.97
-70%$170.97
$51.29
Description
FEATURES
|
High Quality Polymer Tank CHAMPS tanks are constructed with high quality durable polymer material for energy saving by minimizing heat loss. |
|
High Precision Power Selector Provides easy and precise control over the water temperature. |
|
DC Booster Pump Boosts the water pressure while achieving energy efficiency. |
|
Double Pole Electricity leakage Sensing Device (ELSD) Cuts off power supply to the heater when leakage current is detected. |
|
Double Safety Anti-Scald Device Enhanced double safety anti-scald device cuts off power supply automatically when the water temperature rises to scalding level. |
|
IP25 Splash Proof Designed and built with an IP25 rating that protects the internal circuits from splashing water. |
SPECIFICATION
| Power Rating | 3.3kW, 230V a.c 50Hz |
| Inlet and Outlet Water Connection | Ø15mm (1/2" BSP) |
| Minimum Water Flow Rate | 2L/Min |
| Recc. Water Flow Rate | 4-6L/Min |
| Permissible Inlet Water Pressure | 0.1-0.3 MPa |
| Recc. Inlet Water Pressure | 0.1 MPa |
| Dimension | 236 x 413 x 95mm |
| Weight | 1.7kg |
| Warranty | 5 Years Warranty – Heater Tank 2 Years Warranty – Heater Parts |
