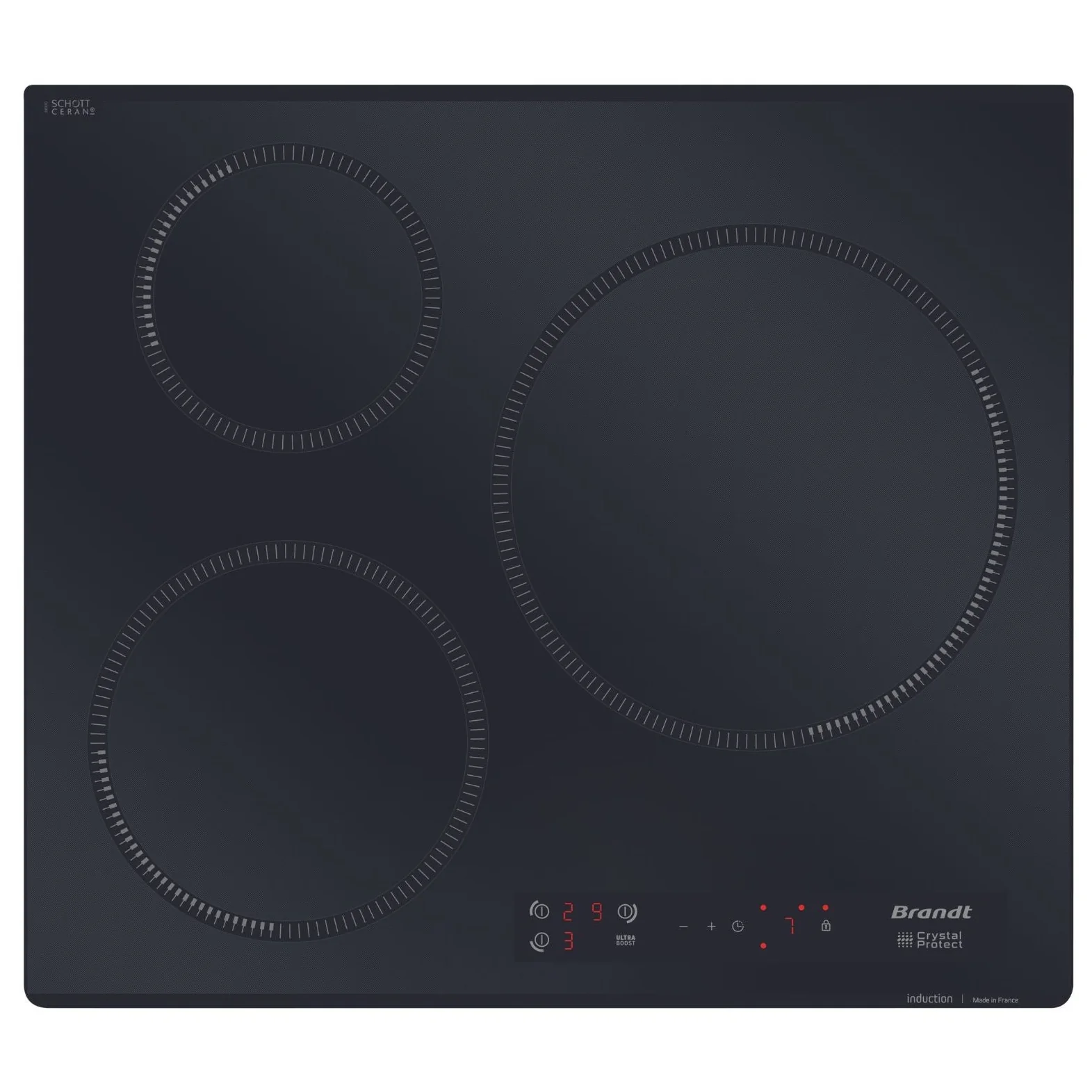

60CM 3 ZONE ANTI SCRATCH ULTRABOOST INDUCTION HOB

Features	• Vitroceramic glass • Crystal Protect Anti scratch technology • Quick access to power level 5
Display	Red LED digit display
Controls	Electronic touch sensitive controls
Power Level	9 power levels + ultraboost
Ultraboost	• The ultraboost function allows the hob to quickly heat up. • The heating process can be up to 20% faster than the classic boost function.
Timer	Dedicated 99 minutes cooking timer
Pack 10 Safety features	Residual heat indicator Small object safety Anti overflow Autostop® system Keypad lock Automatic saucepan detection Temperature limiter Low voltage, Connection error, Over Tension
Cooking zone #1	Front Left, 210mm, 3600W
Cooking zone #2	Rear Left, 160mm, 2500W
Cooking zone #3	Center Right, 280mm, 3600W
Maximum electric power	7400 W
Current	32 A
Voltage	220-240 V
Frequency	50/60 Hz
Length of electrical supply cord	130 cm
Type of plug	Without
Dimension of product	W580 x D510 mm
Built in dimensions	W560 x D490 mm
Fully flushed dimensions	Recessed height 6.5 x W583 x D513 mm
Packed dimensions	H140 x W750 x D600 mm
Net weight	10.1 kg
Gross weight	11 kg



TECHNICAL DIAGRAM
